Product Description
- Indoor: P2.6 （P1.5, P1.9, P2.3 & P2.9 in R&D.）
- 4-Way Arc-angle cabinet
- Buckle type independent control box
- Magnetic front and rear maintenance
- Embedded LED Module
- Size: 500mm*500mm*80mm

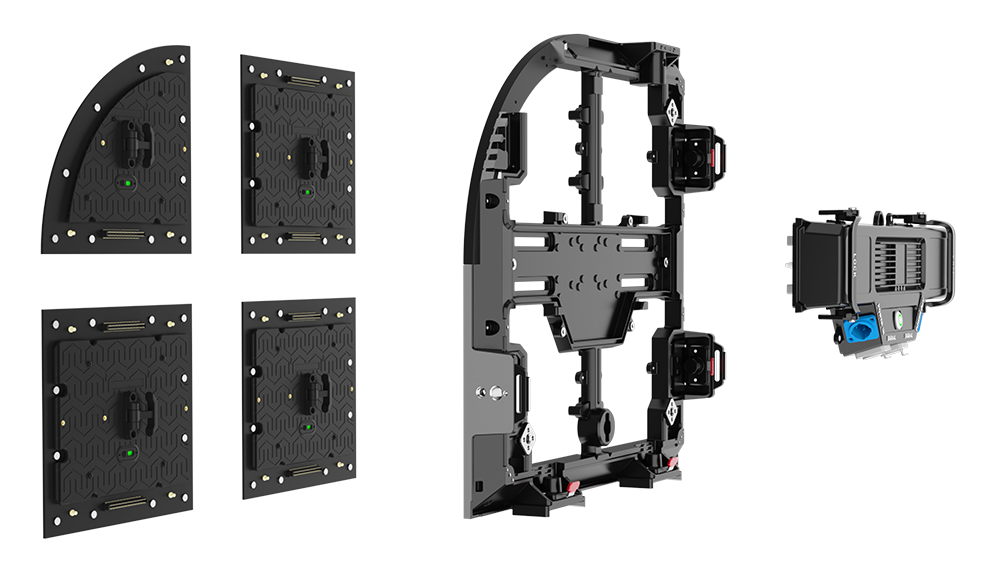

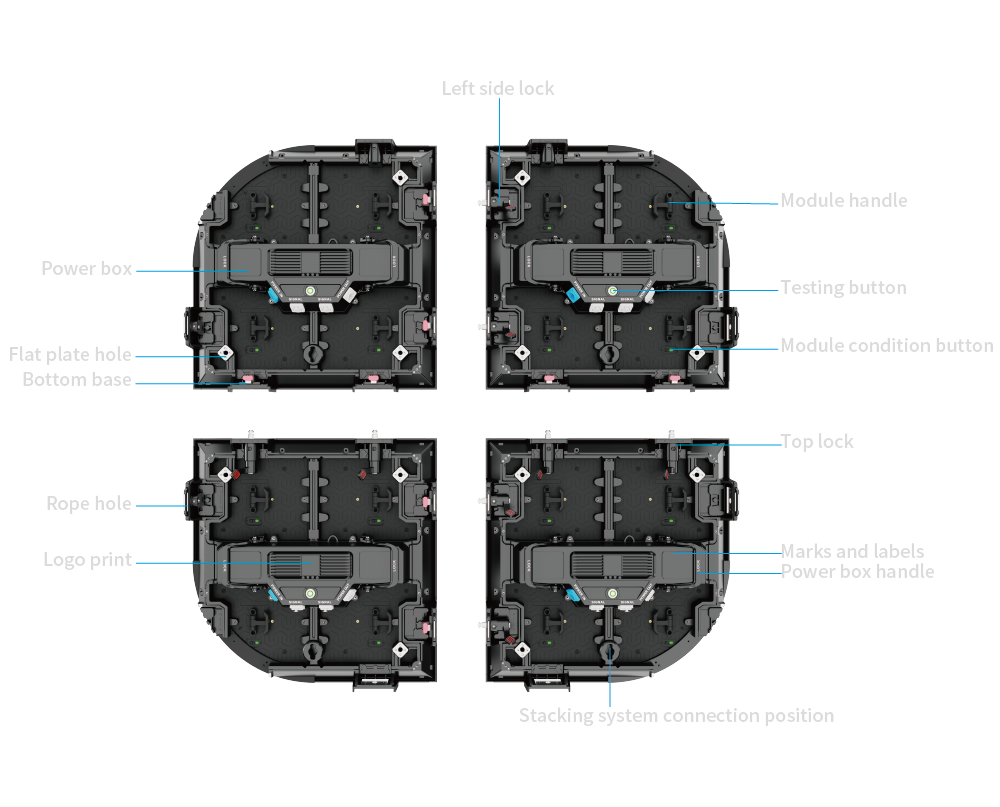

Cabinet Details

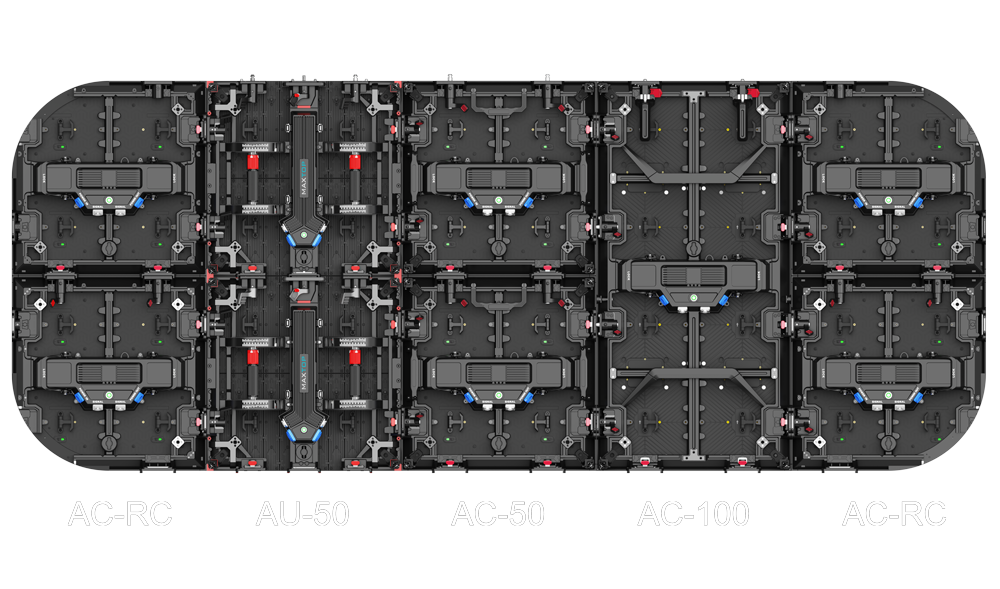

Mixed Splicing
Technical Parameter
| Product Model | Indoor P2.6 |
| LED | SMD1515 |
| Pixel Pitch | 2.604mm |
| Module Resolution | 96dots(W)*96dots(H) |
| Pixel Synthesis | 1R1G1B（3 in 1） |
| Pixel Density | 147456dots/m² |
| Scan Mode | 1/32 Scan |
| Refresh Rate | ≥3840HZ |
| Driving IC | PWM high refresh IC(or as requested ) |
| Gray Level | ≥14Bit |
| Module Size | 250mm(W)*250mm(H) |
| Brightness | ≥700cd/m² |
| Color Temperature | 9000±500 |
| Viewing Angle | ≥140° |
| Best Viewing Distance | ＞2.6m |
| Power Consumption(max.) | ≤650W/m² |
| Power Consumption(avg.) | ＜220W/m² |
| MTBF | ＞50000H |
| Working Temperature | -20℃ ～ 40℃ |
| Level of Protection | IP40 |
Contact us for a quotation
Elevate exhibitions, product launches, and premium stages with round corner LED panel displays engineered for impact. Our AC-RC series delivers uninterrupted curved visuals – no bulky bezels or awkward seams. Create immersive branded environments, smooth radius stages, or architectural installations with ultra-flexible configurations. Soft-corner rental screens enable flowing creative designs previously impossible with traditional panels. From curved logo towers to interactive runways, transform any venue into a focal point where audiences engage deeper.
Need a defining feature? Provide your space dimensions for a free technical layout and same-week quote.
Email: info@maxtop-led.com
WhatsApp: +86 188 7638 4616
