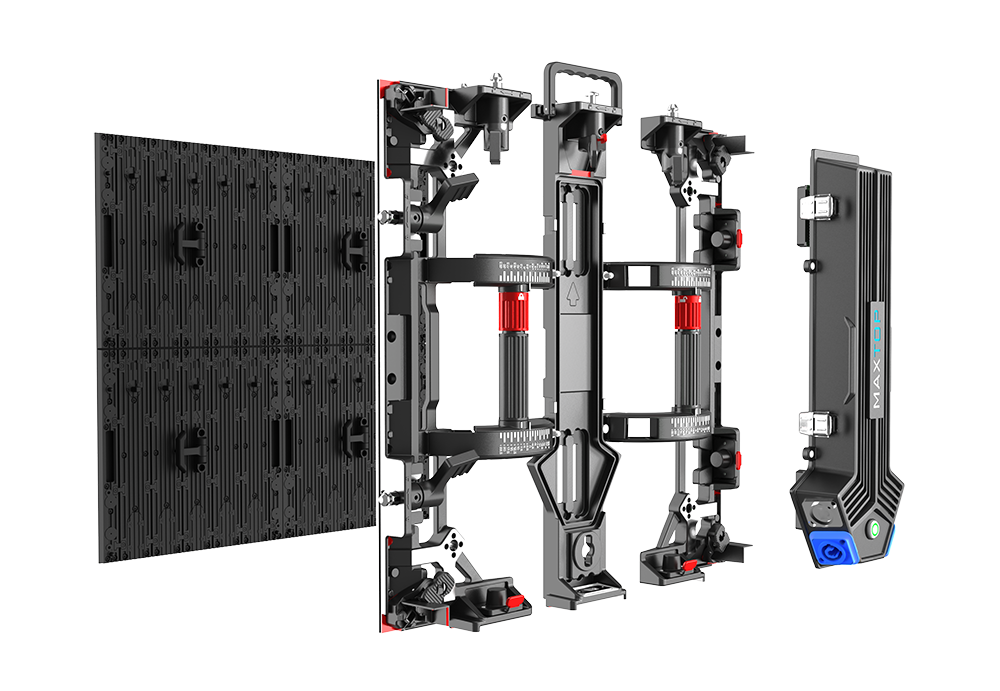

Product Description
- Pixel pitch: P1.9, P2.6 （P1.5, P2.9 & P3.91 in R&D）
- 0-45 degree adjustment
- Independent control box
- Corner protector
- Soft LED module
- Size: 500mm*500mm*80mm
Flexible LED Cabinet Details

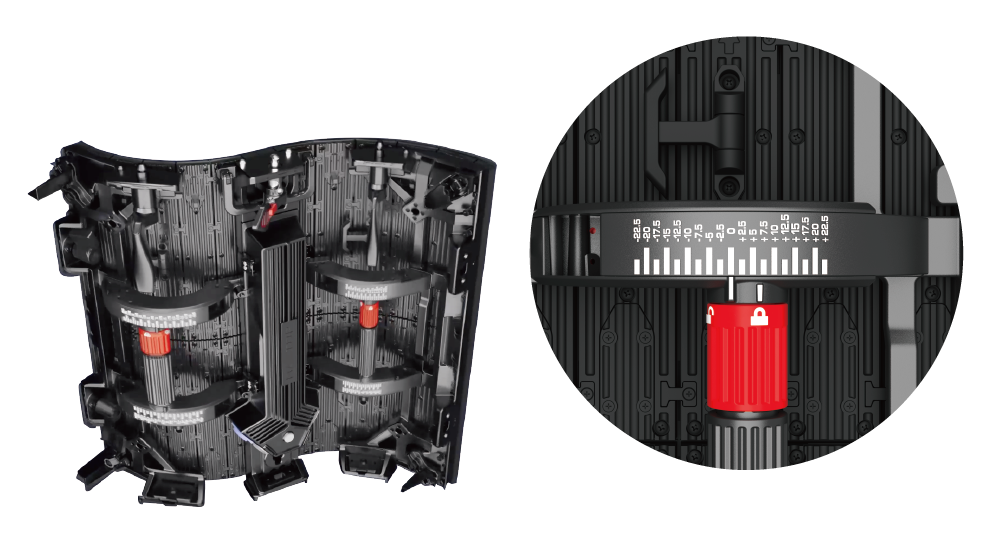

Flexible Adjustable
With 0 to 45° adjustment in 2.5° increments, it supports the creation of diverse shapes including concave arcs, convex arcs, and waves.

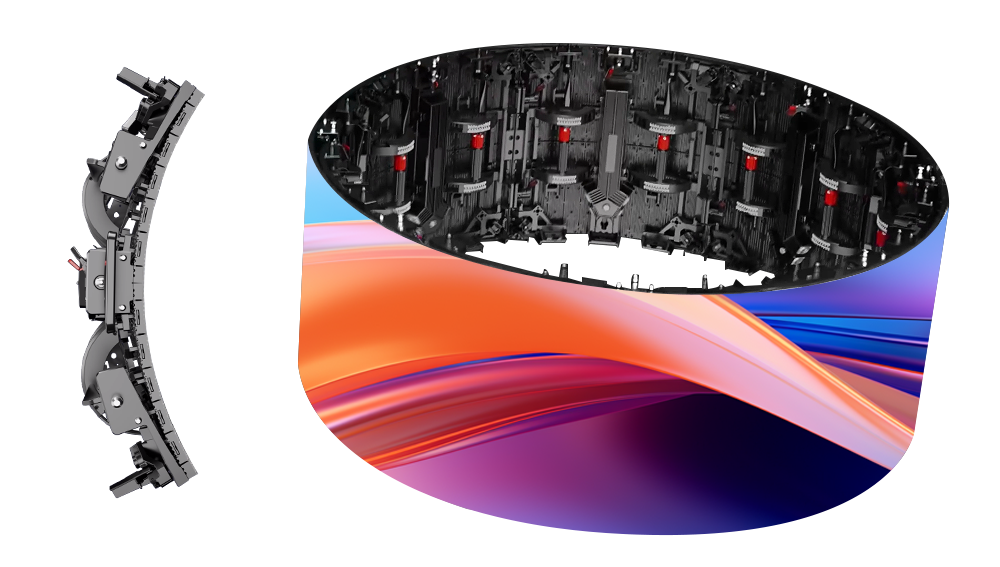

Circular Splicing
It can be easily assembled into cylindrical LED screens. Only 8 cabinets are required to assemble into a ring.
Mixed Splicing
Technical Parameter
| Product Model | AU-P1.9 | AU-P2.6 |
| LED | SMD1212 | SMD1515 |
| Pixel Pitch | 1.953mm | 2.604mm |
| Module Resolution | 128dots(W)*128dots(H) | 96dots(W)*96dots(H) |
| Pixel Synthesis | 1R1G1B（3 in 1） | 1R1G1B（3 in 1） |
| Pixel Density | 262144dots/m² | 147456dots/m² |
| Scan Mode | 1/32 Scan | 1/32 Scan |
| Refresh Rate | ≥3840HZ | ≥3840HZ |
| Driving IC | PWM high refresh IC(or as requested ) | PWM high refresh IC(or as requested ) |
| Gray Level | ≥16Bit | ≥14Bit |
| Module Size | 500mm(W)*250mm(H) | 500mm(W)*250mm(H) |
| Brightness | ≥800cd/m² | ≥800cd/m² |
| Color Temperature | 9000±500 | 9000±500 |
| Viewing Angle | ≥140° | ≥140° |
| Best Viewing Distance | ＞2.0m | ＞2.6m |
| Power Consumption(max.) | ≤650W/m² | ≤650W/m² |
| Power Consumption(avg.) | ＜220W/m² | ＜220W/m² |
| MTBF | ＞50000H | ＞50000H |
| Working Temperature | -20℃ ～ 40℃ | -20℃ ～ 40℃ |
| Level of Protection | IP40 | IP40 |
Contact Us for Creative Event
The AU Series flexible LED cabinet revolutionizes event displays with its flexible LED cabinet design, incorporating S-curve smooth splicing. This enables dynamic, fluid curvatures for creative setups—ideal for events, exhibitions, and more—without compromising structural integrity. Crafted with precision engineering, it delivers seamless transitions between shapes such as flat and curve, ensuring durable, high-impact visuals.
Boasting HOB technology, these cabinets enhance durability and reliability against impacts, while offering quick installation for fast event turnarounds. From S-shapes to curved configurations, the system prioritizes adaptability and longevity, making it a versatile solution for any venue seeking innovative, easy-to-setup LED displays.
