When planning indoor events like trade shows, product launches, or corporate seminars, rental companies often hit the same wall: you want to offer clients both crisp flat video walls and smooth curved or cylindrical shapes, but most suppliers force you to pick one system — meaning double inventory, double spares, double training.

After delivering a 136㎡ creative LED rental display​ to a Japanese client — who needed flat walls, small curves, large arcs, and wrapped columns all in one event setup — we landed on a repeatable hybrid formula. It cut spare-part inventory by ~30% and reconfiguration time by ~20%. Here’s exactly how it works, and why it fits rental fleets that serve mixed event types.

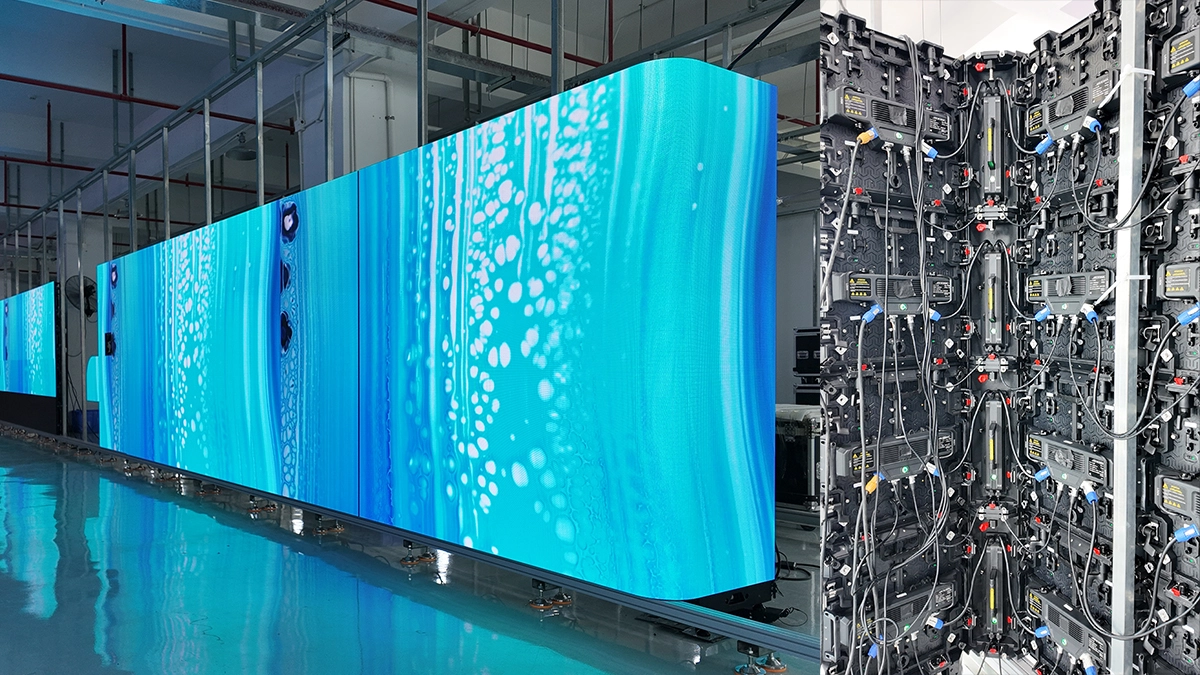

creative LED rental display

The Problem with “One-Shape” Rental Fleets

Most rental houses stock either flat panels (easy, cheap, boring) or flexible curves (versatile, pricier, harder to maintain). Neither handles the full brief:

  • Trade show booths want flat backdrops plus rounded reception counters.
  • Product launches want a flat stage wall plus a curved interview backdrop.
  • Seminars want cylindrical sponsor columns plus a flat presentation screen.

A true creative LED rental display should handle all of those without you buying three separate systems. That’s what this project achieved.

Four Series, One Pixel & Color Standard

The Japanese client’s 136㎡ order split across four MAXTOP series. The key design decision: all four share P1.953 pixel pitch, SMD1212 LEDs, 700 nits brightness, and the NovaStar A5s Plus control — so any combination mixes with zero visible color shift.

Series Panel Type Signature Feature Qty in Project Where It Shines
AC-50 A​ Straight-edge flat 500×500mm die-cast, front service 64 sq m Main stage walls, large flat backdrops
AC-50 C​ 45° versatile edge Two beveled edges; shares modules & control box with A 24 sq m Right-angle corners, small-radius turns
AU​ Flexible curved Bends 0–45° per cab, adjusts every 2.5° 48 sq m Arcs, S-shapes, full cylinders

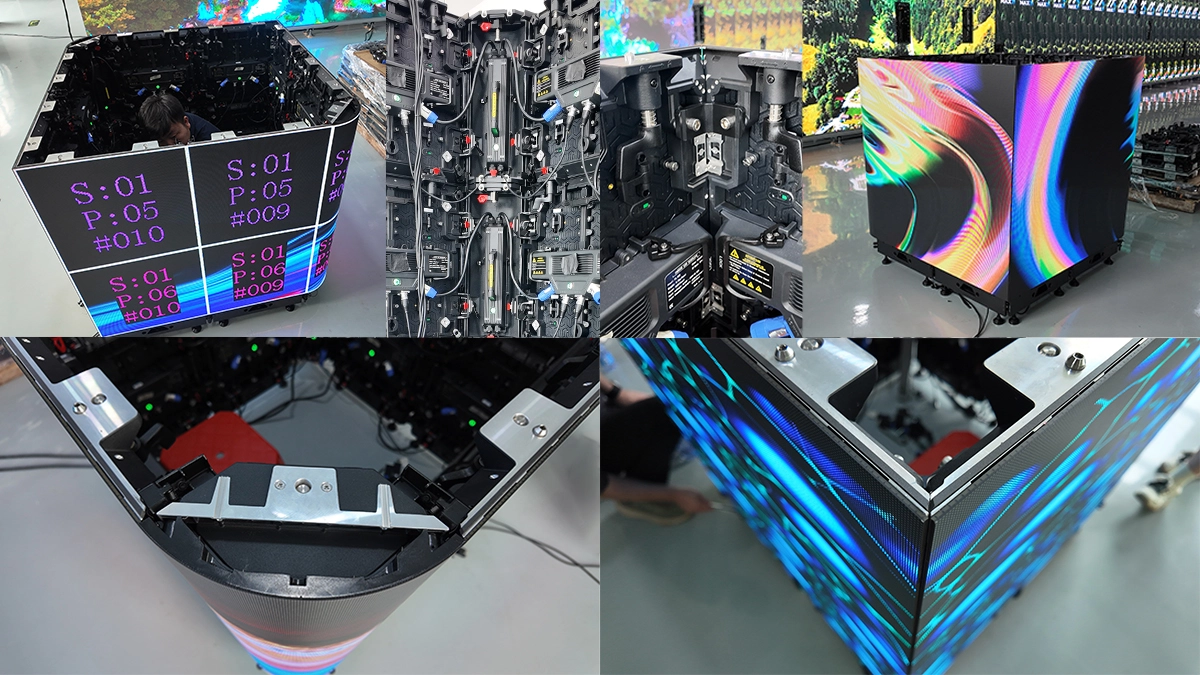

AC-RG Pro​ Corner-radius module 250×500mm; 4 pcs = mini cylinder 10 pcs DJ booths, rounded corners, double-sided towers

Driver IC: CFD455, 32-scan, 3840–7680Hz refresh — flicker-free under slow-mo cameras, which matters for live-streamed events. Power: 100–240V wide-range, one per cabinet. Connectors: aviation-grade plug (Shangwen).

How the Mixing Actually Works

Because modules and independent control boxes are shared between AC-50 A and C, you’re not really “buying four systems” — you’re buying one flat system and adding C / AU / RG as shape extenders.

Common rental combos we see:

  1. Flat wall with clean corners​ → AC-50 A + AC-50 C
  2. Flat-to-curve transition​ → AC-50 C + AU (C bridges the angle change)
  3. Rounded corner video wall / column wrap​ → AC-RG Pro + AC-50 A
  4. Full cylinder or wave​ → AU alone (8 cabs ≈ 1.6m diameter 360°)

Installation supports rigging (hanging) and stacking (floor stand), so the same fleet serves ballroom ceilings and ground-level booths.

Why Rental Houses Care: The Cost Side

Numbers matter more than specs when you’re running a fleet:

  • ~40% fewer spare modules: AC-50 A and C share the exact same LED module and control box. Only the frame differs. Stock one module type, cover two cabinet types.
  • GOB surface protection: Resin-coated modules shrug off knocks during load-in — fewer dead pixels, fewer RMA claims.
  • One control ecosystem: NovaStar across all four series. Your techs train once; freelance crew pickup is faster.
  • Faster reconfig: Two techs can flip a 20 sq m wall from flat to curved in <30 min using quick-lock + tool-free curve adjust on AU.

FAQ — The Questions Rental Buyers Actually Ask

Q1: Can a creative LED rental display really mix flat and curved in one wall?​

Yes, that’s the point of the hybrid approach. You can transition from flat AC LED panels into AU curves without visible gaps. All series are color-matched at the factory.

Q2: Do I need to stock separate spare modules for flat and curved rental cabinets?​

Not for A and C — same LED module and control box. Only the cabinet frame differs. AU and RG Pro use the same LED spec but different frames, so you stock their modules separately. Total SKU count stays far below running two full independent fleets.

Q3: What’s the smallest cylinder I can build with this system?​

With AC-RG Pro: 4 pcs make a mini cylinder (≈320mm face radius). With AU: 8 cabs give you a ~1.6m diameter full 360° column. Smaller diameters are possible by mixing AU + RG.

Q4: Is this P1.953 creative LED rental display only for indoor events?​

This specific build was P1.953 / SMD1212 / 700 nits tuned for indoor trade shows and seminars. For outdoor rental, step up to SMD1415 or DIP, higher nits, IP65 — but the ‘mix flat + curved’ logic carries to our outdoor rental lines too.

Q5: How do I know what mix ratio to order for my rental fleet?​

Most rental houses land around 50% flat (A) / 20% C / 25% AU / 5% RG for general-purpose fleets. If you do fashion shows or brand activations, push AU higher. Send us your typical event floor plans and we’ll suggest a ratio.

Contact MAXTOP for technical specifications and inquiry.
