When planning outdoor events like concerts, festivals, or touring shows, you often need more than just a flat LED screen. Sometimes you want a curved backdrop, a cylindrical pillar, or a smooth 90° corner for 3D effects. But most suppliers offer either rigid flat LED panels or flexible ones – rarely both in one system. And durability under harsh weather? That’s another headache.

At MAXTOP, we recently delivered a complete outdoor solution to a client from Uzbekistan. They needed a P2.9 outdoor flexible LED screen for stage backdrops, and later planned to use it across multiple Central Asian countries on tour. The requirements were clear: high durability, creative shapes, and no color mismatch. Here’s how three product series worked together as one P2.9 outdoor flexible LED screen system.

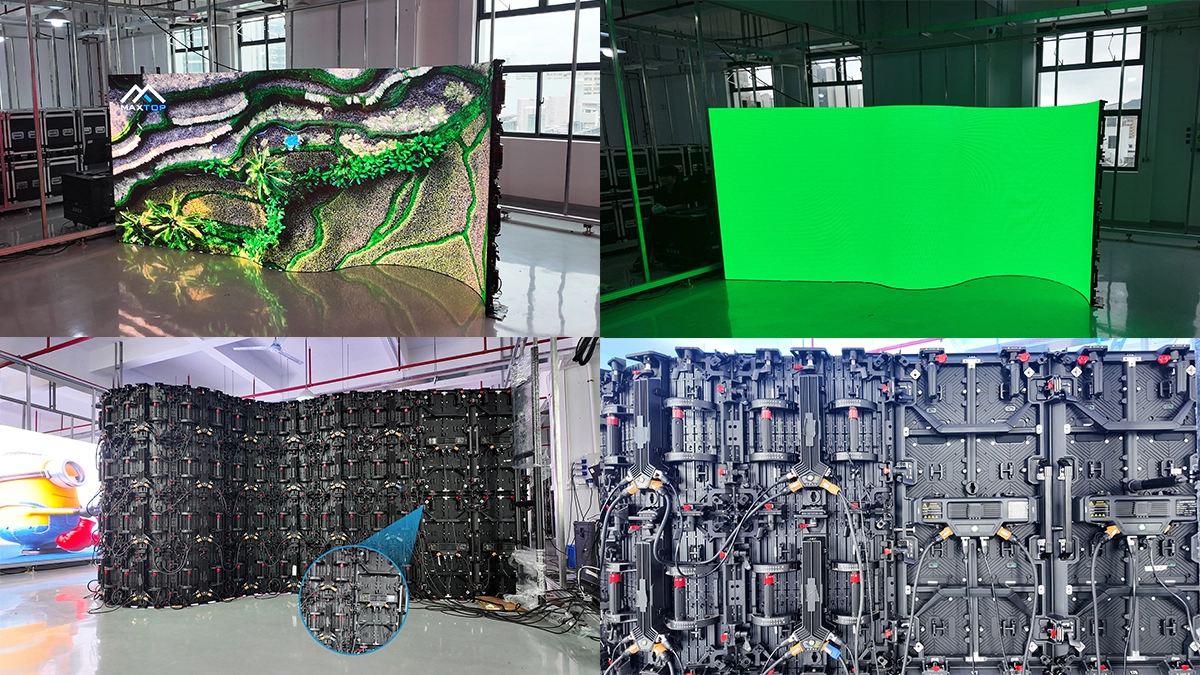

P2.9 Outdoor Flexible LED Screen

The Core Protection: AOB – Strategic Armor for Every Lamp

AOB stands for Admixture On Board. Forget the complex name – think of it as a super-strong glue job. After the LEDs are soldered to the board, we apply a special protective compound. It flows right around the base and pins of each tiny lamp, locking it in place. This isn’t a full coating that smothers everything. It’s a precise, strategic armor for the weakest link.

Result: dramatically higher push and pull strength. Lamps won’t loosen or fall off during vibration, wind, or temperature changes. Maintenance costs drop, especially for touring setups.

Three Series, One Seamless System

Series Type Quantity Panel Size Scan / Brightness Key Feature
AU Series Flexible 40 m² 500×500 mm (±45° bend) 1/21 scan, 3000–4500 nits Bends up to 45°, creates arcs, cylinders, waves
AC-100 Series Rigid flat 90 m² 500×1000 mm 1/21 scan, 3000–4500 nits Large flat areas, front service
AC-RG Pro Series 90° corner 32 pcs 250×500 mm (right angle) 1/21 scan, 3000–4500 nits Forms clean 90° corners, connects to both above

All share the same Kinglight SMD1515 lamps, ICN2153s IC (7680 Hz refresh), Nova A5s Plus receiving cards, and Shangwen connectors. This guarantees perfect color consistency – no visible difference when mixing series.

Flat, Curved, or Corner? Why Choose When You Can Have All?

Traditional thinking says: pick flat LED panels for straight walls, or flexible LED panels for curves. But our P2.9 outdoor flexible LED screen system lets you combine them freely:

  • Use AC-100 for the main flat stage backdrop.
  • Add AU series for curved side wings or a cylindrical tower.

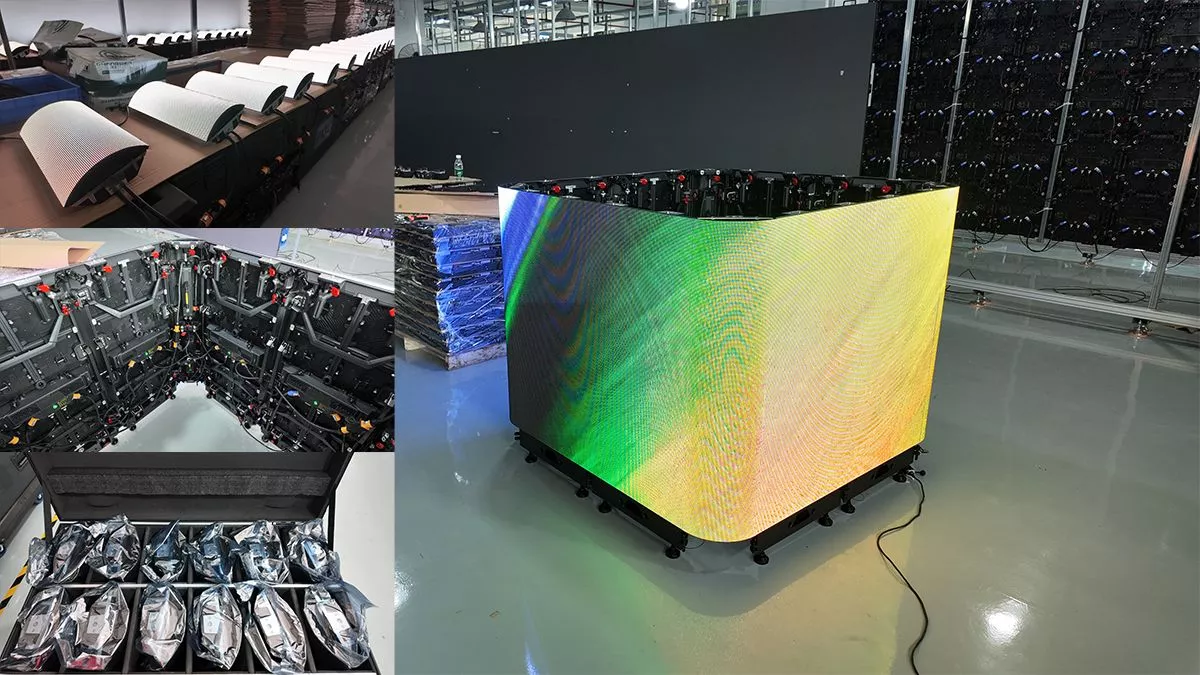

  • Insert AC-RG Pro at the corners for clean 90° transitions – perfect for 3D video content.

The result? A single screen that flows from flat to curve to corner without gaps or color shift. And because AOB protects every lamp, the whole setup survives outdoor touring conditions.

Real Project: Uzbekistan Client’s Tour-Ready Solution

This client needed a screen for local outdoor events first, then for touring in Kazakhstan, Kyrgyzstan, and beyond. We provided:

  • 40 m² AU flexible panels for curved stage elements
  • 90 m² AC-100 flat panels for the main video wall
  • 32 pcs AC-RG Pro for right-angle corners

They now have a P2.9 outdoor flexible LED screen that can be reconfigured as a flat wall, a curved arch, a cylindrical column, or a multi-angled stage set. AOB ensures reliability even after repeated assembly and disassembly.

Why This Matters for Your Next Outdoor Event

  • One system, endless shapes– flat, curve, corner, cylinder – all with perfect color match.
  • Tour-grade durability– AOB prevents lamp failure, reducing repair downtime.
  • Cost effective – shared modules, fewer spare parts, longer lifespan.

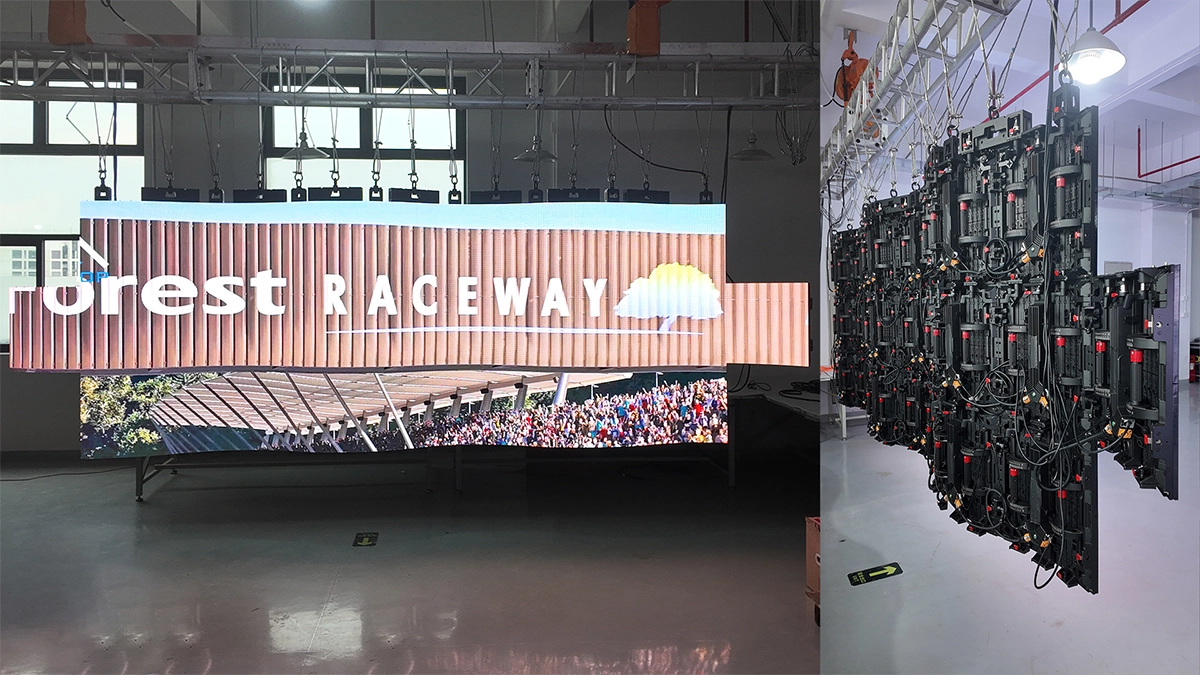

  • Easy installation– supports both rigging and ground stacking.

So next time you plan an outdoor show, don’t settle for a single shape. Ask for a P2.9 outdoor flexible LED screen that does it all.

Save

Contact MAXTOP for technical specifications and inquiry.
